1.upgrading structure, high precision and higher speed
2. with advanced DSP controlling system, strong function, can effectively engrave on plane/ gradient(optional0, cutting and drilling holes, etc.
3. transmitting files directly from CorelDraw, Auto CAD etc.
4.equipped with lifting platform which can perform processing at any height
5. the delicate machine body, adopting DSP controlling system to ensure work without computer and support USB flash disk direct output.

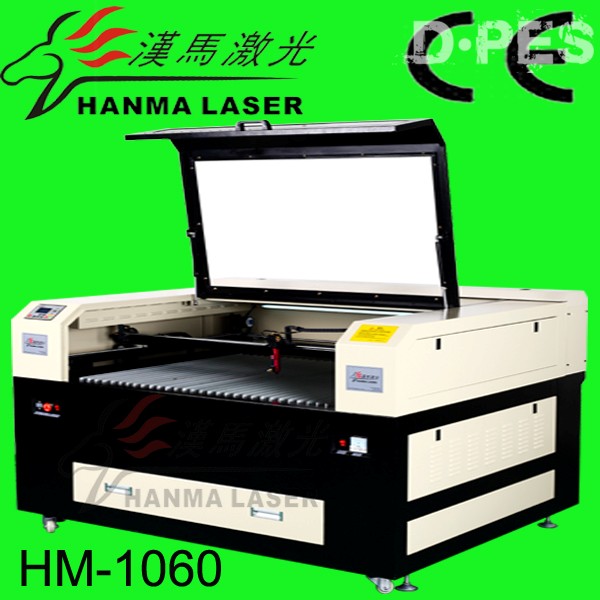

Laser engraving/cutting machine HM-1060
| Power |
60W,80w,100W,150W |
|
Laser type:
|
HM-1060
|
|
Power supply:
|
AC220V±10%,50HZ
|
|
Working area:
|
1000X600MM
|
|
Max cutting speed:
|
200mm/sec
|
|
Max engraving speed:
|
2000mm/sec
|
|
Worktable:
|
Lifting platform
|
|
Locating precision:
|
0.1mm
|
|
Min shaping character:
|
Engrving 0.8mm, cutting 20MM
|
|
Operating temperature:
|
0°c-45°c
|
|
Work degree of humidity
|
5-95%(have no Ning water)
|
|
Resolution ratio:
|
0.025mm
|
|
Control configuration:
|
Advanced DSP controlling system
|
|
Data transfer interface:
|
USB flash disk / directly from computer
|
|
System environment:
|
Above Window 2000, window XP
|
|
Cooling way:
|
Water cooling
|
|
Graphic format supported:
|
BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF, etc.
|
|
Compatible software
|
Transmit files directly form Coreldraw, AutoCAD, etc.
|
|
Cutting thickness
|
20mm
|
|
Color separation
|
200
|
|
Sloping engraving
|
90°--180°
|
|
Cuts off the water supply the protection
|
yes
|
|
Machine dimention
|
1000*840*710mm
|
|
Red point as standard
|
not
|
|
Air pump as standard
|
Yes
|
|
Net weight
|
85kg
|
|
packing
|
Standard non-woody
|
