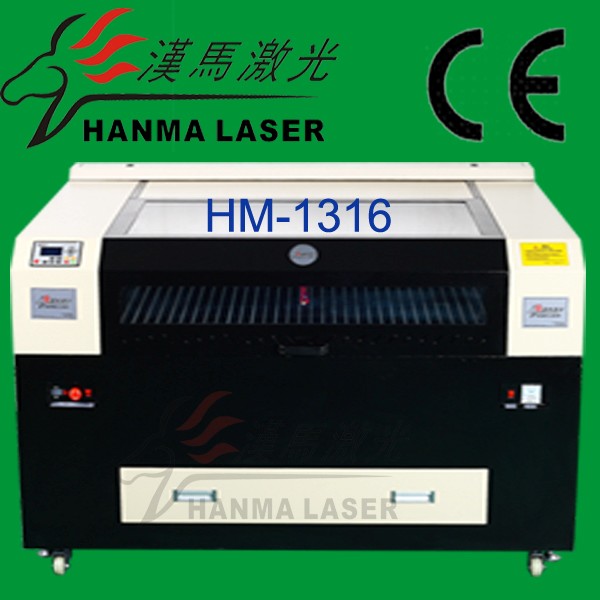

China laser cutting engraving machine for wood crafts(HM-1316)
Parameter
- engraving and cutting area: 1300x1600mm
- Laser power: 80/100w/150w/180w
- Cutting speed: 0-64000(mm/min)
- Resolution ratio: 0.025mm
- Power supply:AC220V±10%.50HZ
- Gross power:<1200W
- Operating temperature :0°C -45°C
- Operating humidity :5%-95% (free of condensed water)
- Graphic format supported :BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
- Net weight :250kg
- Dimension :1800×1400×1000mm
- Auxiliary : Industry cooling system , air pump , exhaust fan device
- option part : honeycomb ,up and down table , rotary unit
Features
1. Original Singapore imported lens with molybdenum base, making the equipment produce smaller faculae and stronger cutting force, greatly improving working efficiency and reducing cost.
2.USB cable to transfer data and offline DSP control system are both available.
3.The advantage of this series is to cut thicker materials in a high precision. We have a special fuction that prevents waste of acrylic and other expensive materials where the machine will start at the same point in event of a power loss.
Applicable Materials:wood, paper, leather, cloth, organic glass, resin, acrylic, wollens, plastic,rubber ceramic tile, crystal, bowlder, bamboo.
Guarantee & Aftersales Service
Guarantee for one year.
24-hour technical support by email or calling
User-friendly English manual for machine using and maintaining
Machine Parts
Sample Display
