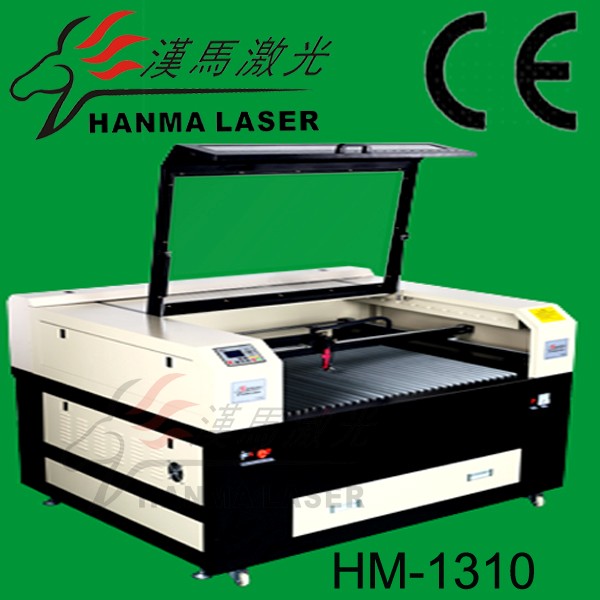

Guangzhou high speed ball screw laser engraving cutting machine for nonmetal (HM-S1310)
Features
1.Adopting the strip shape platform, which can bear heavier materials such as organic glass, wood and so on.
2.Original Singapore imported lens with molybdenum base, making the equipment produce smaller faculae and stronger cutting force, greatly improving working efficiency and reducing cost.
3. USB cable to transfer data and offline DSP control system are both available.
4.Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability and effectiveness
Applicable Materials:wood, paper, leather, cloth, organic glass, resin, acrylic, wollens, plastic,rubber ceramic tile, crystal, bowlder, bamboo.
Applicable industry:
cloth,embroide, fabric toy,furniture, reticule, glove, bag, leather, adviertising, decoration, electric product, rubber, acrylic product.
Parameters
- engraving & cutting area: 1300×1000mm
- Laser power: 80/100/150w/180w
- Cutting speed: 0-64000(mm/min)
- Resolution ration: 0.025mm
- Power supply: AC220V±10%.50HZ
- Gross power: <1250W
- Operating temperature : 0°C -45°C
- Operating humidity : 5%-95% (free of condensed water)
- Graphic format supported :BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
- Net weight : 300kg
- Auxiliary : Industry cooling system , air pump , exhaust fan device
- option part : honeycomb ,up and down table , rotary unit
Machine Parts
Sample Display
Looking for distributors around the world
