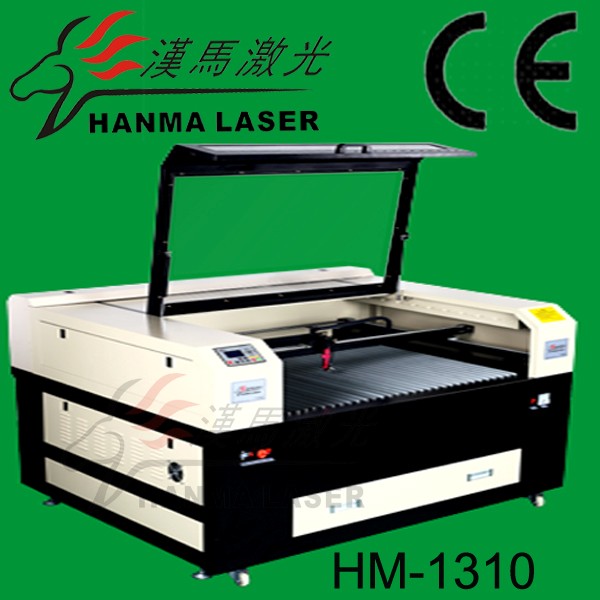

Acylic ,wood laser cutting engraving machine factory
(OEM is available)
Parameter
- engraving and cutting area: 1300x1000mm
- Laser power: 80W/100w/150w/180w
- Cutting speed: 0-64000(mm/min)
- Resolution ratio: 0.025mm
- Power supply: AC220V±10%.50HZ
- Gross power: <1200W
- Operating temperature : 0°C -45°C
- Operating humidity : 5%-95% (free of condensed water)
- Graphic format supported : BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
- Net weight : 250kg
- Dimension :1800×1400×1000m
- Auxiliary : Industry cooling system , air pump , exhaust fan device
- option part : honeycomb ,up and down table , rotary unit
Features :
1. USB cable to transfer data and offline DSP control system are both available.
2.Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability and effectiveness
3.Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments manufacturing industry for years, extending the life of the laser tube.
.
Applicable Materials :
Wood, paper, leather, cloth, organic glass, resin, acrylic, wollen, plastic, rubber, ceramic tile,crystal, bowlder etc.
Machine Parts :
Sample display :
Looking for distributors around the world
